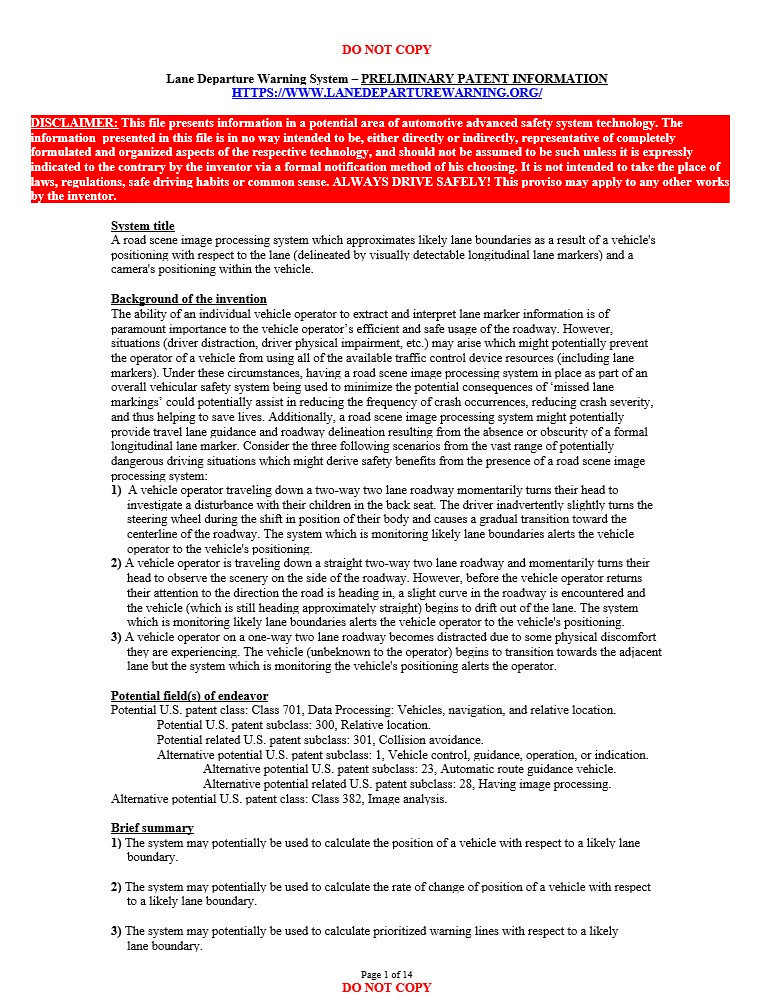

Preliminary Patent Information including system title, background of the invention, potential field of endeavor(s), brief summary

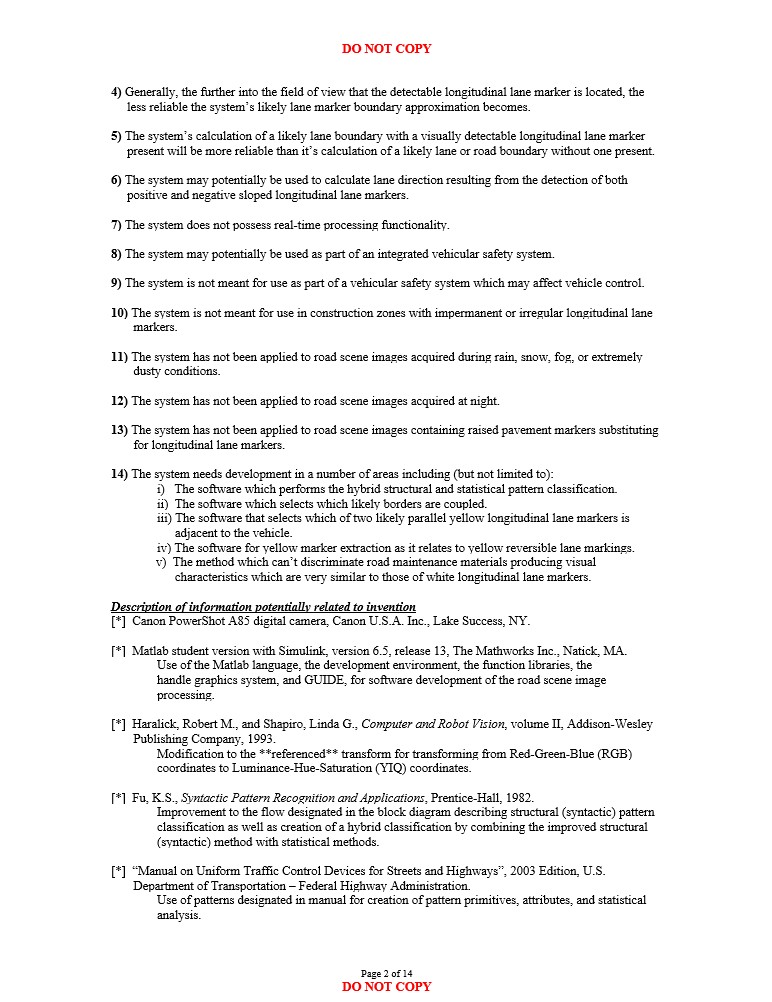

Patent Information including brief summary and description of information potentially related to invention

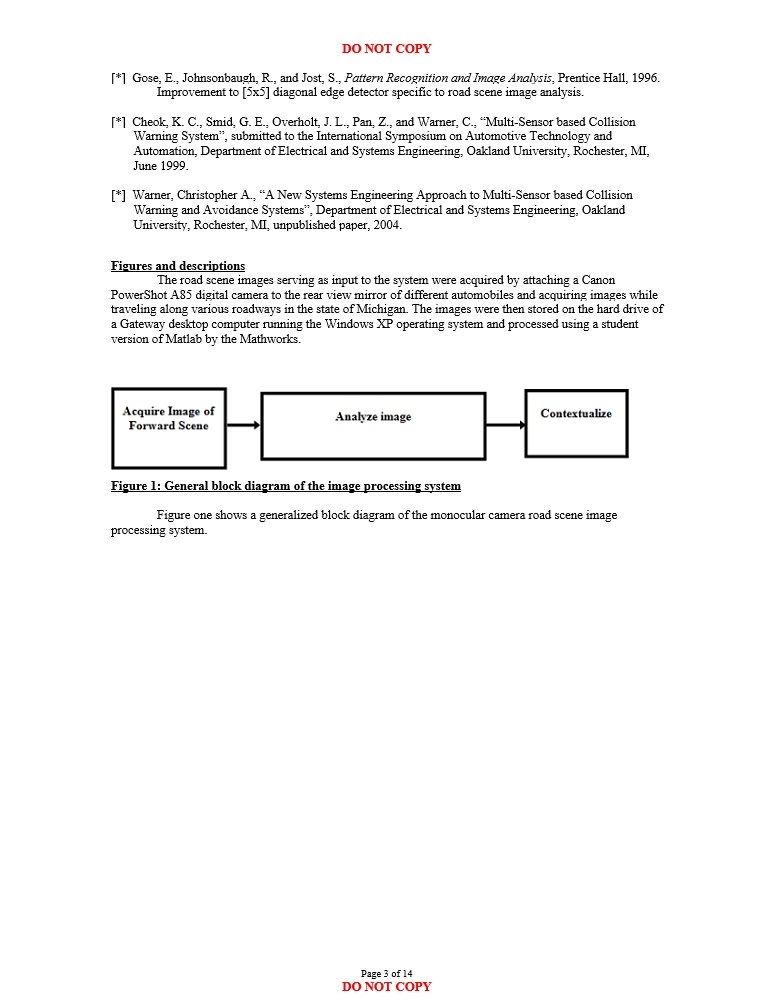

Patent Information description of information potentially related to invention, figures and descriptions

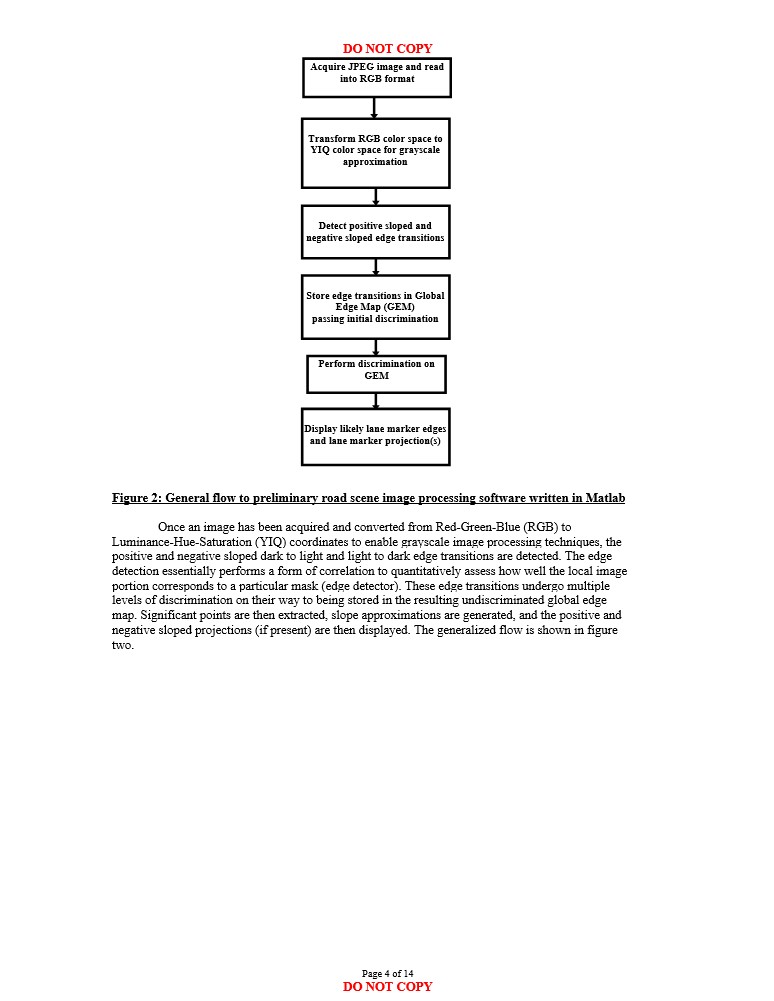

Flowchart with general flow to preliminary road scene image processing software written in Matlab with some added detail

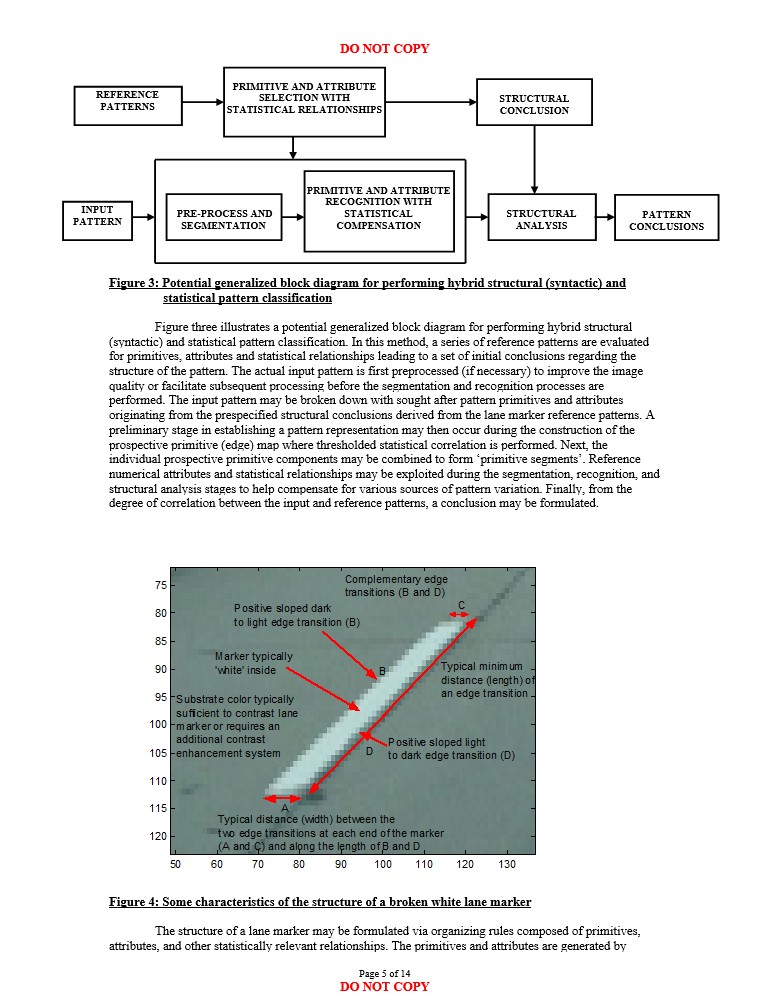

Potential Generalized block diagram for performing hybrid structural and statistical pattern classification with added detail

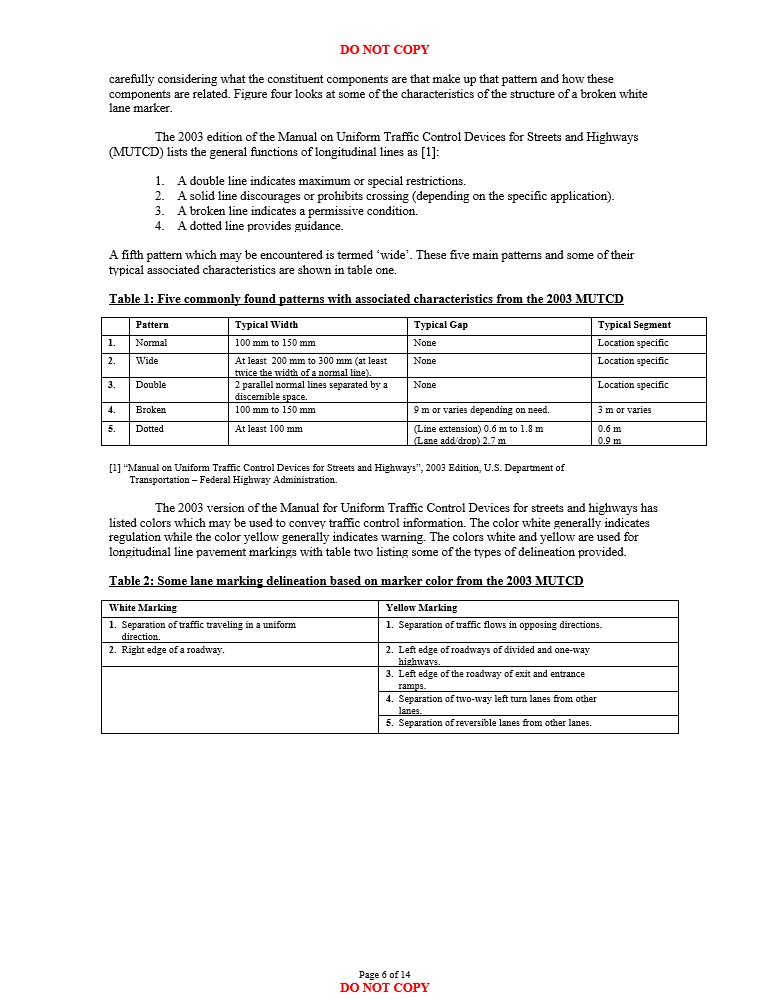

Some characteristics of the structure of a broken white lane marker and five commonly found patterns and characteristics

Some lane marking delineation based on marker color from the 2003 Manual for Uniform Traffic Control Devices

An artificial road scene image with sample lane markers in the field of view and a sample portion of a global edge map for searching

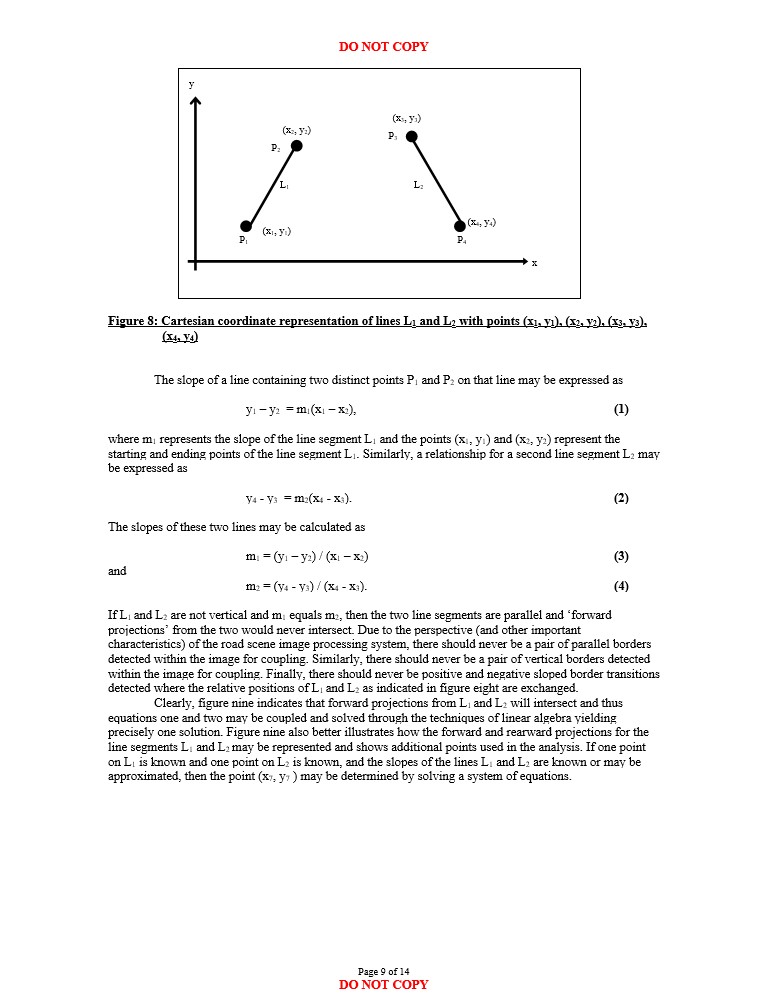

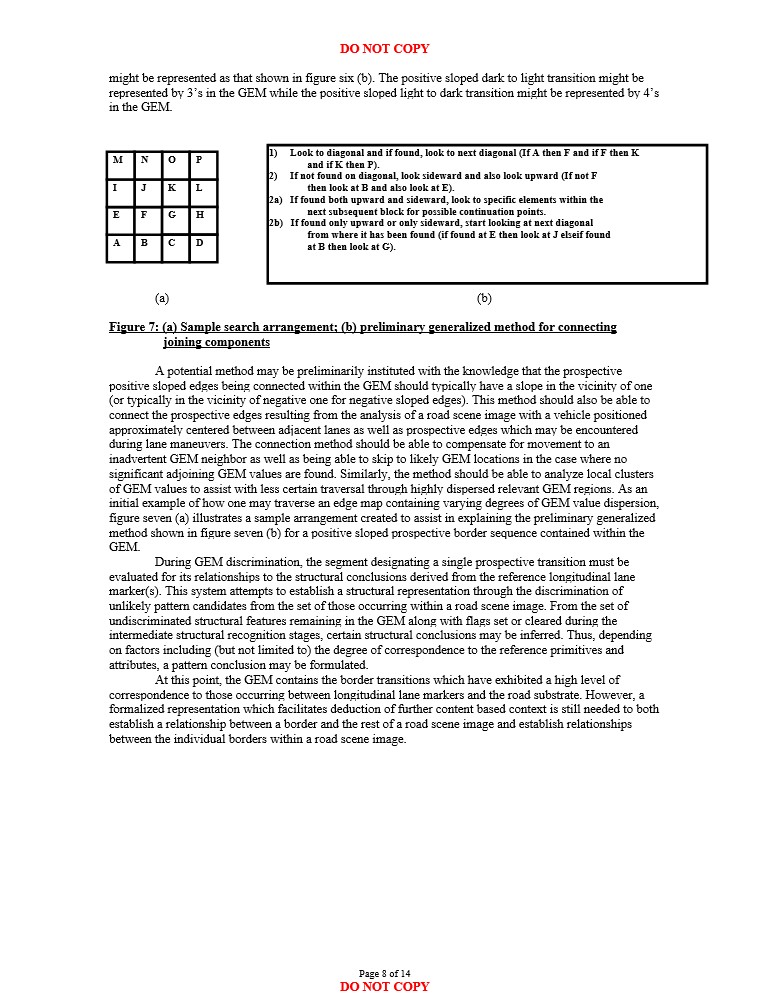

GEM discrimination and a Cartesian coordinate representation of lines L1 and L2 with points (x1,y1), (x2,y2), (x3,y3), (x4,y4)

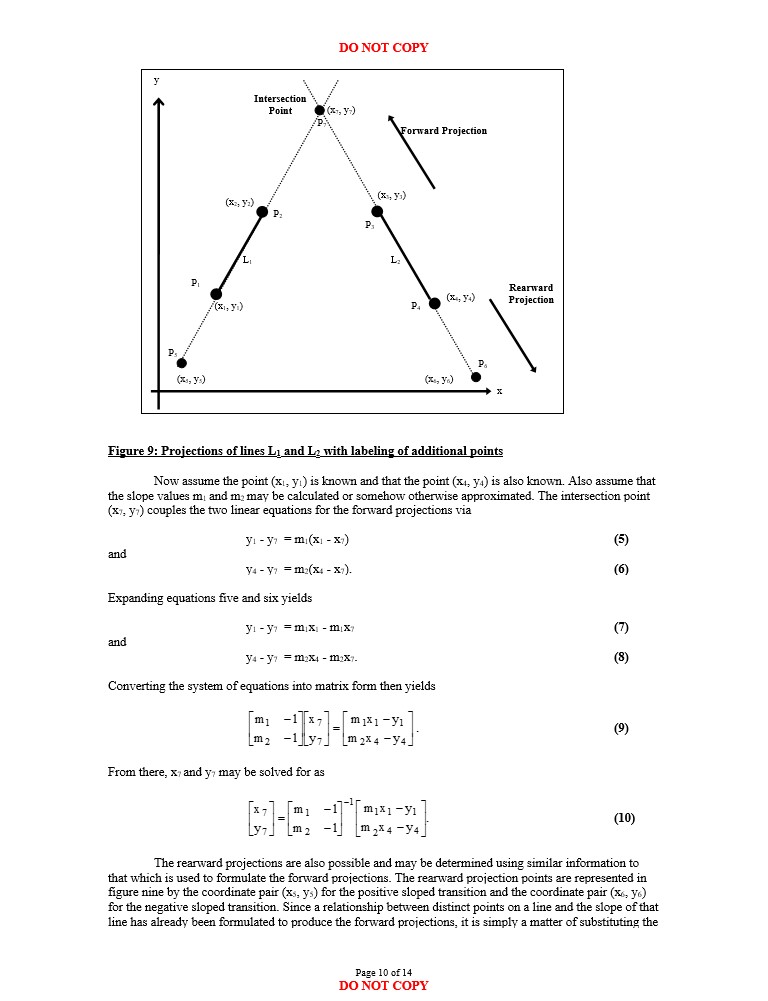

Projection of lines L1 and L2 with labelling of additional points and forward and rearward projections with coupled equations

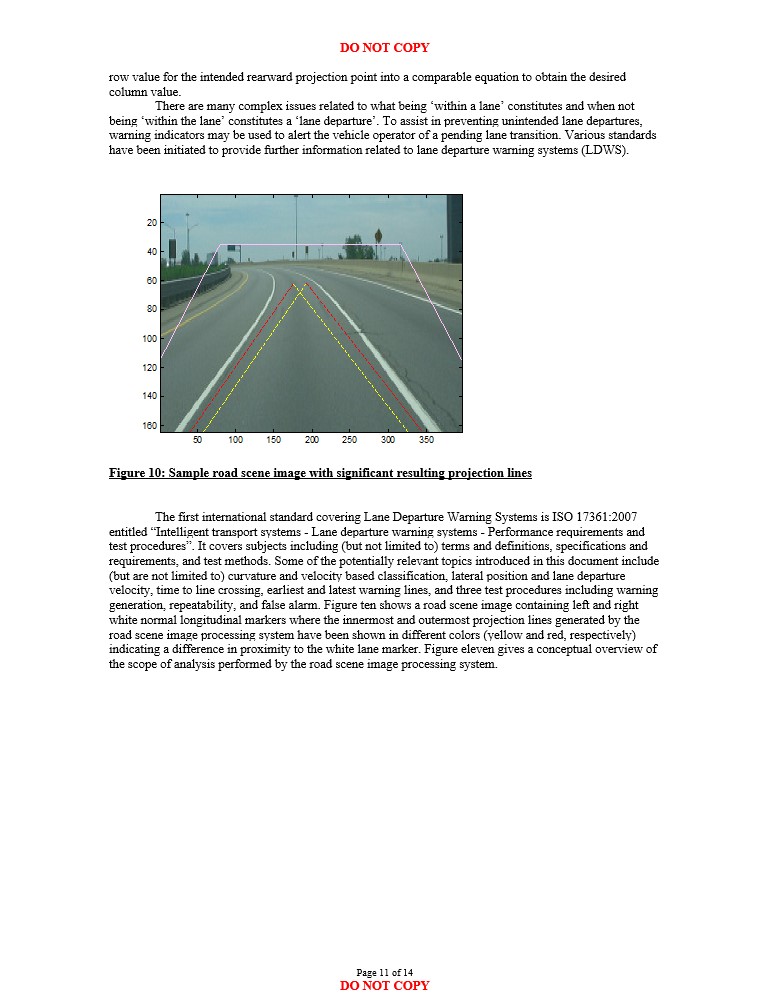

Coupled equations represented as a system of equations in matrix form towards a road scene image showing projections

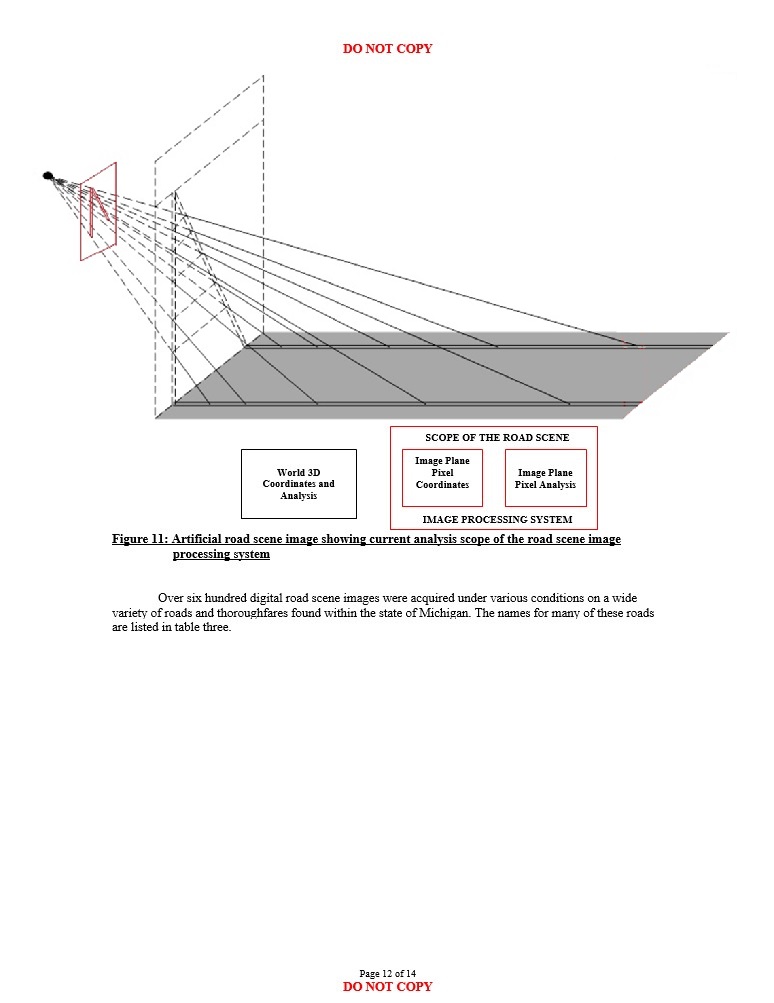

Artificial road scene image showing current analysis scope of the road scene image processing system

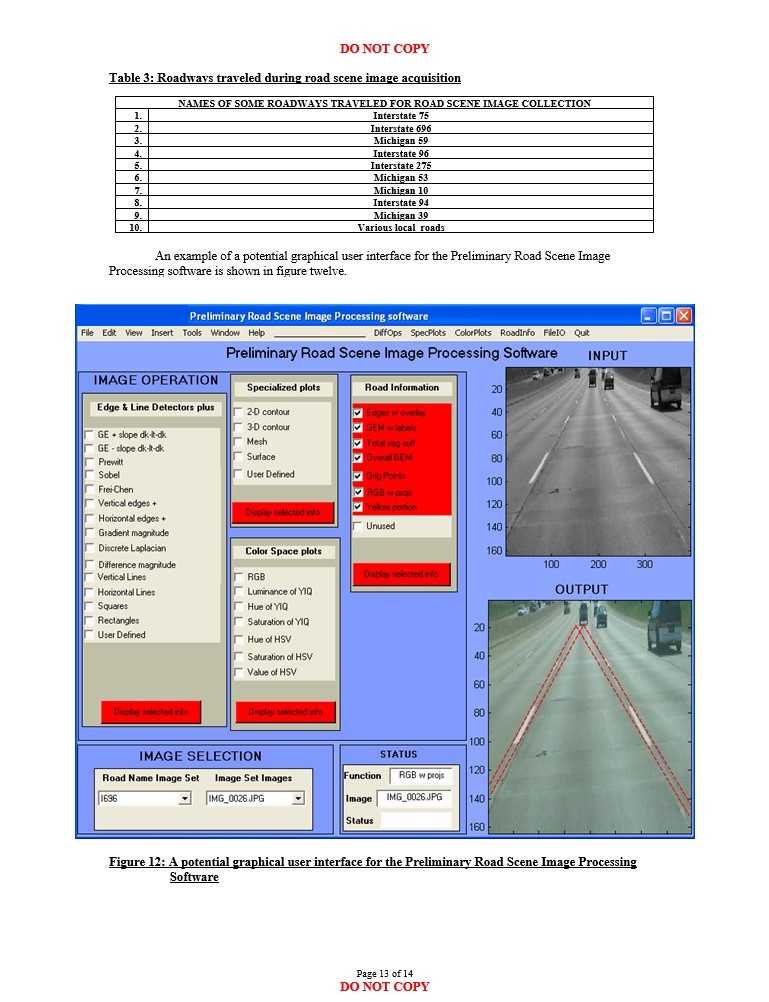

Table of roadways travelled during road scene image acquisition and a potential graphical user interface for the Preliminary Road Scene Image Processing Software

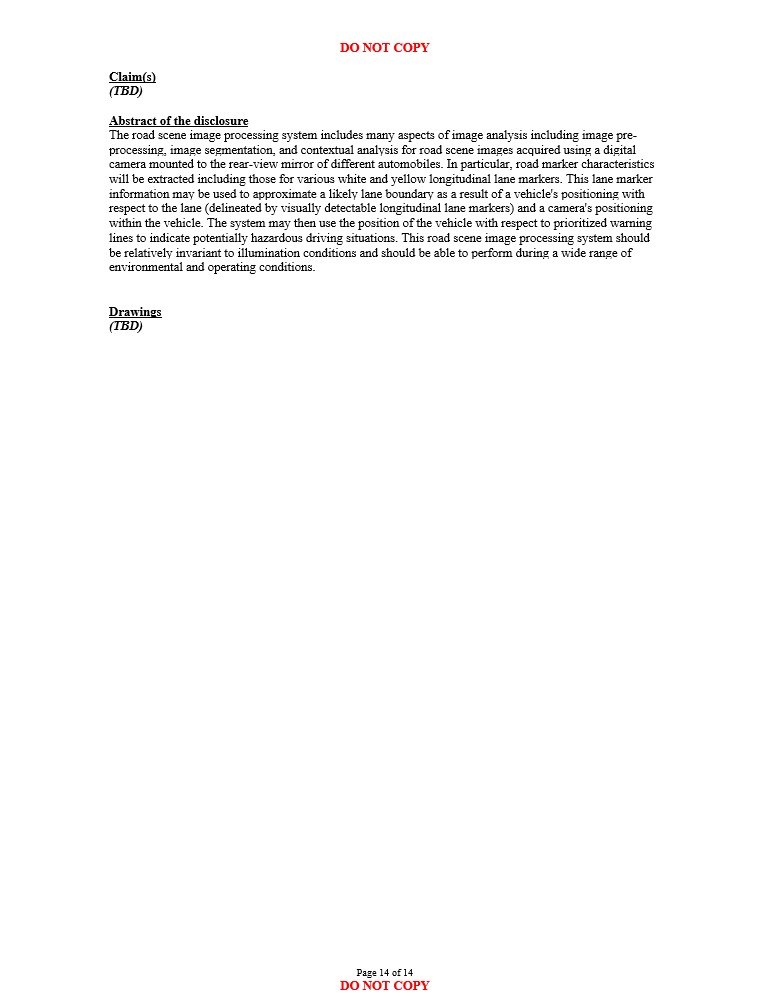

Preliminary patent information abstract of the disclosure
